Item code 62104
Floorfixx smart 8 mm 82.5 x 56.5 cm (2.80 m²)
The Floorfixx smart is an easy-to-install underlayment system that provides an insulating, even, and load-bearing substrate. Suitable for both residential and commercial applications.
The Floorfixx smart is an innovative underlayment system that utilizes a convenient tongue-and-groove connection to create an insulating, flat, and immediately load-bearing surface. It is perfect for both residential and commercial uses. Also, use the Floorfixx smart edge strips for a perfect start on the first row. It is designed for renovating poor subfloors with a minimum top layer thickness of 2.5 mm, including LVT Dryback, LVT Click, vinyl, carpet tiles, LVT Rigid with underlayment, and linoleum.
- No waiting or drying times are required, ready to bear loads immediately
- It levels out imperfections
- Provides maximum stability
- Complying with the 10 dB sound insulation standard set by the homeowners' association
| Floor type | LVT Dryback / LVT Click / Vinyl / Carpet tiles / LVT Rigid with underlayment / Linoleum |
| Product weight | 4881 g/m² (10% margin) |
| Product dimensions (Length) | 82.5 cm (10% margin) |
| Product dimensions (Width) | 56.5 cm (10% margin) |
| Product dimensions in m2 | 2.8 m² |
| Sound-reducing - ΔLlin | 10 dB ΔLlin |
| Sound-reducing - ΔLlin - Test method | EN 13501-1:2007 + A1:2009 |
| Base unit | Pack |
| Thickness | 8 mm (10% margin) |
| Density | 610 kg/m³ (10% margin) |
| Material | Top layer: 3 mm MDFBottom layer: 3 mm MDF & 2.2 mm XPS foam |
| Brand | Floorfixx |
| Formaldehyde (Test method: EN 120) | E-1 |
| Leveling capacity | 2 mm over 2 m length |
| Thermal resistance - R-value | 0.123 m² K/W |
| TOG rating | 1.23 TOG |
| Thermal resistance - Test method | ISO 8302 |
| Suitable for underfloor heating | Yes |
| PC (Punctual Conformability) | 1<mm<2 |
| CS | CS2 |
| CS/CC (compressive Strength / Compressive Creep) | 240 kPa |
| Domestic use | Yes |
| Project use | Yes |
| Laying method | Floating |
| Product dimensions (Unit) | m² |
| Type of base floor | Wooden floor / Fixed sand cement floor / Floating screed |
| Bending strength (Test method: EN 310) | 40 N/mm² |
| Wheelchair load (Test method: EN 985) | Suitable |
| Sound-reducing - ΔLw | 20 dB ΔLw |
| Sound-reducing - ΔLw - Test method | EN 13501-1:2007 + A1:2009 |
| Flame-retardant | Bfl-S1 |
| Flame-retardant - Test method | EN 13501-1 |
| CS/CC (Compressive Strength / Compressive Creep) | 240 kPa |
Technical information

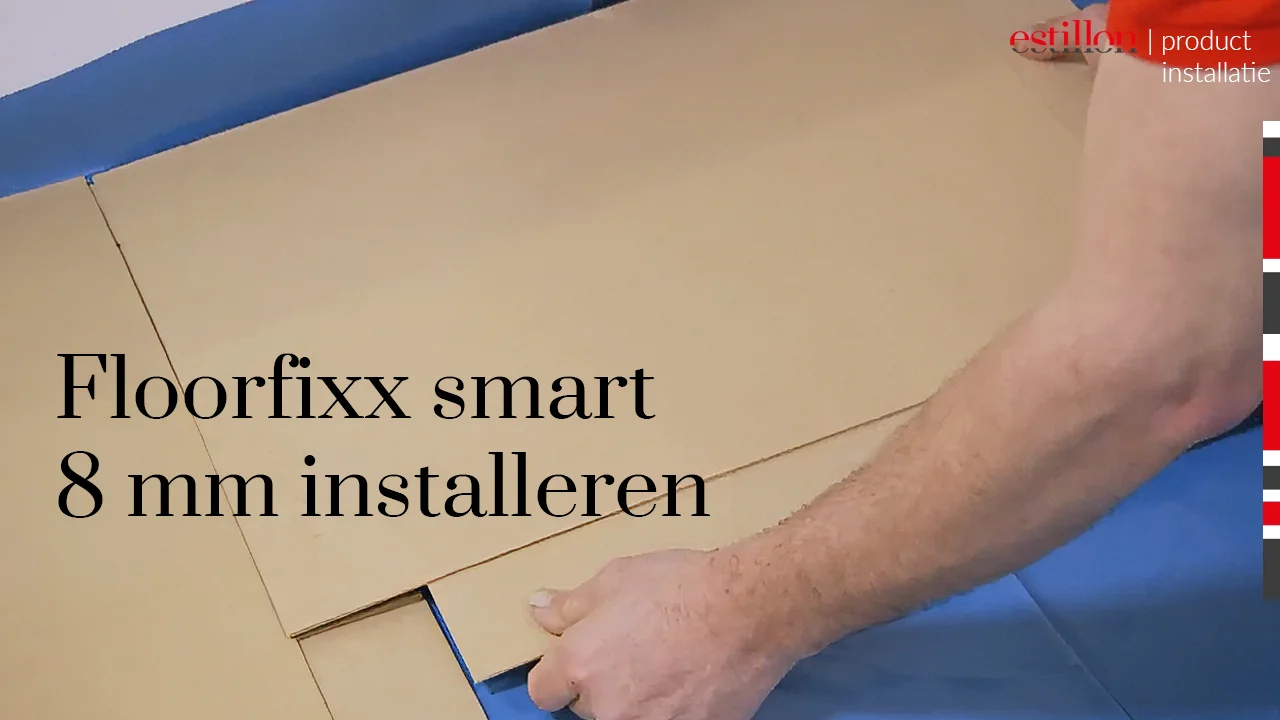

Installation instructions
Installation instructions visuals
